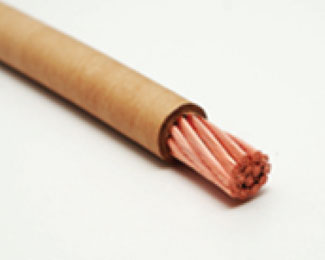

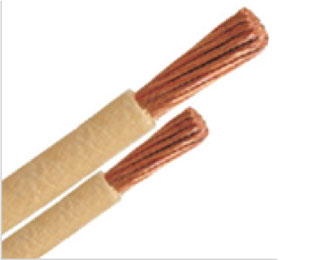

Paper Covered Stranded Copper Cable

Widely used as the internal connection for high voltage electric equipment such as Power & Distribution Transformers, Reactors etc.

  • product-images
  • product-images
  • product-images

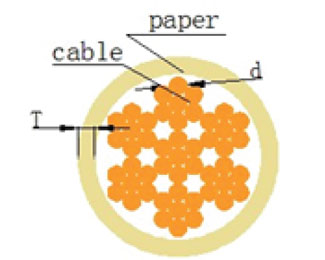

Dimensions

  • Cross section: 6mm2- 1000mm2
  • Diameter of wire (d): 0.07mm-3.15mm
  • Insulation thickness (T):1.0mm-25.0mm
  • Method of lapping: butt-lapped or overlapped

Insulation types

  • Standard /Thermally upgraded Kraft paper
  • Standard/Thermally upgraded Crepe paper
  • Semi-conductive paper etc.

Note: Other insulation coverings can also be supplied as per customer requirements.

For Technical property & detailed information, please Contact Us
