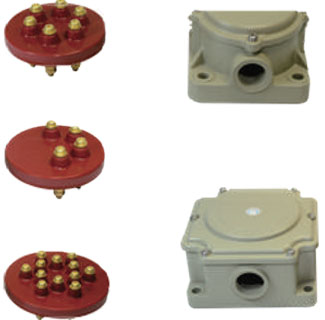

BCT Terminal Box

  • product-images

Application

For connecting the secondary lead of Bushing Current Transformer of oil immersed transformer to the terminal blocks in local control panel.

  • Assembly           :           Bolt type.
  • Material             :           Aluminum.
  • Terminal             :           4P, 6P, 12P

Characteristic

Bushing Current Transformer (BCT) terminal box is an apparatus for oil immersed transformers and is characteristic of electrical, thermal ability as well as sealing capability proven through the tests of an authorized institute.

  • Airtight test :proven under test pressure of 2 kg / cm² by air.
  • Power frequency withstand voltage test : Test voltage of 2.5 KV is applied to among terminals as well as between each terminal and box flange for 1 minute

For Technical property & detailed information, please Contact Us
