Products

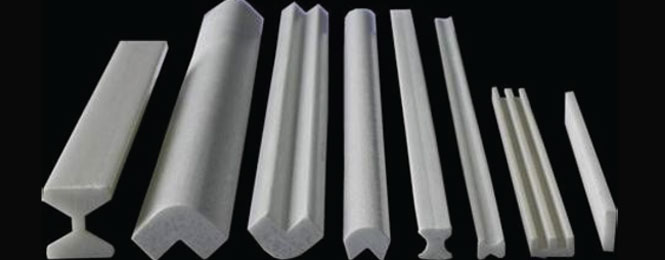

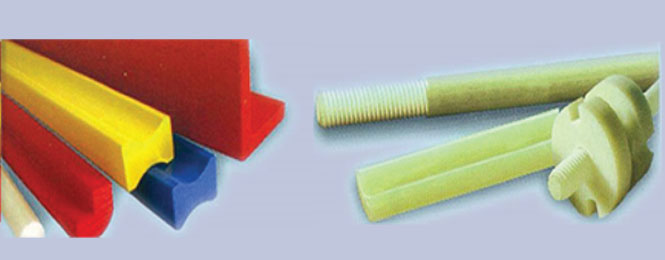

FRP Epoxy Pultruded Profiles

  • product-images
  • product-images

Application

  • Transformers
  • Switchgears
  • Motor Wedges
  • Lightning Arrestors
  • Cable Trays

Temperature Class

  • Epoxy resin based profile - class F(155°C)
  • Profiles of higher temperature - Class H (200°C) can be supplied using special resin system on requirement
  • Profiles with flame retardant characteristic can be supplied by adding additives to the resin system.

Pultrusion Process

  • Unidirectional E-glass and Epoxy Resin System are used for section where high longitudinal strength is required.
  • Woven tape /CSM are used where high Bi-directional strength is required.
  • Epoxy profiles are used for high mechanical strength and where electrical withstand values are critical

FRP THREADED ROD

SIZE: M 8, 10, 12, 16, 20, 24 mm LENGTH: CUSTOMIZE

product-images

FRP STUD ROD

SIZE: M 8, 10, 12, 16, 20, 24 mm
LENGTH :CUSTOMIZE

product-images

FRP BOLT

SIZE : M : 10, 12, 16, 20, 24 mm
LENGTH : 60 mm ( OR CUSTOMIZE)

product-images

FRP TUBE

OD : 10, 17, 19, 22, 25, 25, 32, 34, 40
ID : 16, 22, 25, 27, 32, 35, 39, 39, 45 LENGTH: CUSTOMIZE

product-images

FRP NUT

SIZE: M 8, 10, 12, 16, 20, 24 mm

product-images

FRP ROD

SIZE: M 8, 10, 12, 16, 20, 22, 25, 32,35, 39, 45 mm
LENGTH: CUSTOMIZE

product-images

FRP DOGBONE

SIZE : 8 x 6, 10 x 8, 12 x 10, 13 x 10,16 x 10, 19 x 12 mm
LENGTH : 2000 mm

product-images

FRP CORNER ANGLE

SIZE : 6x 6, 6.5x 6.5, 8x 8, 13x 8 13 x 13
LENGTH: CUSTOMIZE

product-images
