Electrical Insulation PressPaper

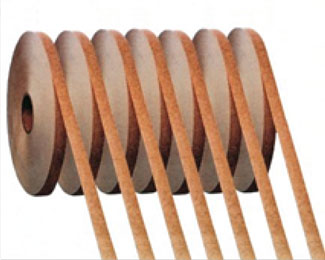

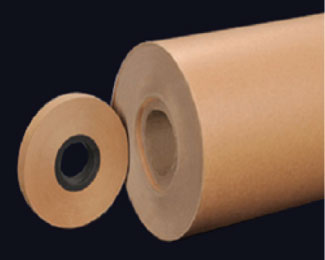

Press Paper (Kraft paper) is a surface insulation material which is resistant to high voltage and a high capacity for impregnation with transformer oil (dielectric mix of oil-cellulose). Kraft paper is made of 100% sulphate wood pulp. It is a high strength paper with excellent electrical properties. It is generally used by manufacturers to meet their need of insulation with an optimum combination of electrical and mechanical strength, low permittivity and maximum oil absorption .It is best suited for coil winders, insulation in motors, transformers, manufacturing of laminates etc.

  • product-images
  • product-images
  • product-images
  • product-images

Application

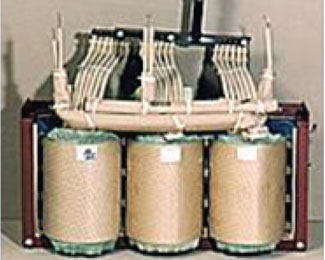

  • Transformers
  • Motors
  • Coil Winding
  • Insulation in electrical machines
  • Cable covering
  • Available according to International standards IEC 60641 P.4.1.A, JIS C 2305 PB-2, DIN 7733 PSP 3030 & PSP 3055

Standard Thickness

  • 0.10mm, 0.13mm, 0.18mm, 0.20mm, 0.25mm, 0.50mm & 0.80mm

Standard roll width

  • 1000mm & 1150mm
  • Note: Reels can also be supplied in slitted form duly slitted as per desired width of the customer. Specific thickness can also be supplied as per requirement of the customer.

For Technical property & detailed information, please Contact Us
