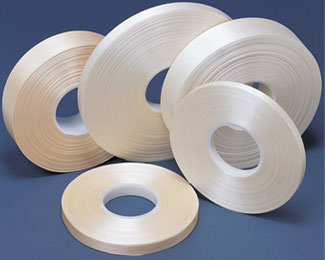

Glass Banding Tape
Glass Banding Tape (also known as Armature Banding Tape, Resin glass Tape, Fiber Banding Tape) is
made from continuous filaments, high tensile electrical grade glass yarn, impregnated with
thermosetting polyester base resin. The yarns are laid parallel to form a thin flat ribbon
& utilizing maximum tensile strength of the glass to give an exceptional strength. After
application and curing the tape holds the body in radial compression. It is a High strength,
resin-impregnated, moisture resistant, fiber glass tape. It is widely used for banding of
Transformer Cores, Armature of electric motors, Rotor of Generators and other rotating machines.
Dimension and Tolerance
|
Unit |
F155 |
H200 |
H+220 |
| Thickness |
mm |
0.30 ±0.05 |
0.30 ±0.05 |
0.30 ±0.05 |
| Standard width |
mm |
7, 10, 20, 25, 30, 40, 50 |
| Standard length |
Mtrs. |
100, 200, 1000, 1500, 2000 |
Technical Data
| Parameter |
Unit |
F155 |
H200 |
H+220 |
| Weight per 100 mtr of 10mm wide tape |
kg |
0.560 ±10% |
0.560 ±10% |
0.560 ±10% |
| Resin content (based on customer requirement) |
% |
24-30 |
24-30 |
24-30 |
| Number of yarns per cm |
Nos. |
30 ± 1 |
30 ± 1 |
30 ± 1 |
| Tensile strength (minimum) |
N/mm |
200 |
250 |
250 |
| Pull in banding |
N/mm |
≥ 100 |
≥ 100 |
≥ 100 |
| Curing Cycle (Typical) |
|
5 hours at 150°C |
| Arc Resistance (ASTM D 495) |
|
>120 Sec. |
Shelf Life Guidelines
| Temperature |
Unit |
F155 |
H200 |
H+220 |
| at 15°C |
Months |
12 |
12 |
12 |
| at 20°C |
Months |
8 |
8 |
8 |
| at 30°C |
Months |
4 |
4 |
4 |
| at 35°C |
Months |
2 |
2 |
2 |
| Note: To avoid failure, take out the tape from
cold storage 24 hours in advance before use without removing it from its
original packing |
