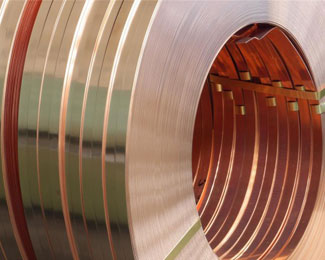

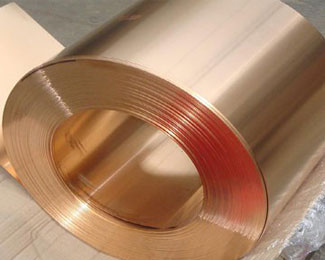

Copper Foil/strip for Transformer

  • product-images
  • product-images

Grade

Cu-ETP/C-11000/E-Cu58.

Application:

  • Winding of Transformers
  • Large scale motors
  • Generator and stators.
Alloy E- Cu58 acc. DIN 1761;1787;40500; 2.0065
Mechanical
properties acc. EN
14121: 2009
Tensile strength:
Yield strength
Elongation:
Rm
Rp0.2
A50 mm%
200 – 260 MPa
< 140 MPa
min 33 %
Available thicknesses from 0.10 – 3.0 mm
Available widths from 10 – 800 mm
Edge burr rolled edges
Telescoping edged trimmed width < 800 : max 4.0 mm
Inside diameter 300, 400 or 500 mm with or without inside core
Outside diameter max. 1200 mm
Coil weight According to customer requirements;
Packaging up to 200 mm width: eye to sky
from 201 mm: eye to wall on pallets or according to customer requirement.

For Technical property & detailed information, please Contact Us
