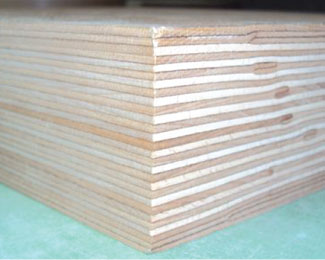

Electrical Insulating Densified Wood for Transformer

ACME is a leading supplier for superior quality Electrical Insulating Densified Wood. Procured from established vendors, these products are made of premium quality raw materials in accordance with International Standards IEC/DIN. Our products enjoy great reputation in the market for their durability, optimum performance and cost effectiveness. With the help of ample stock in our warehouse, we assure Cost effective and time stipulated delivery of the products.

  • product-images
  • product-images
  • product-images
  • product-images
  • product-images
  • product-images
  • product-images
  • product-images
  • product-images
  • product-images

Specifications

  • Low density : From 0.90 to 1.10 Kg/m3
  • Medium density : From 1.11 to 1.15kg/m3
  • High density : From 1.16 to 1.25 kg/m3
  • According to DIN 7707 and IEC 61061

Thickness

  • 10mm – 120mm

Standard Sheet Sizes

  • 1000 * 2000 mm
  • 1200* 2400 mm
  • 1500 * 3000 mm
  • 2400 * 3000 mm

Features

  • High Mechanical Strength
  • High Oil absorption rate
  • Rapid oil absorption
  • Easy for vacuum drying & oil immersion
  • Heat resistant

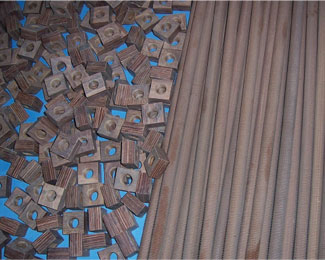

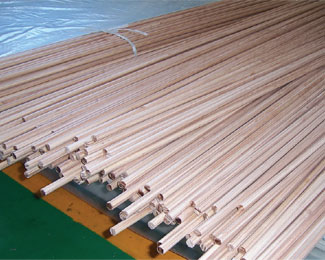

Laminated wood Studs & Nuts

  • Size: M10, M12, M16, M20 & M24
  • Length: 1000mm (for Stud)

We can supply following Components made of Electrical Insulating Wood

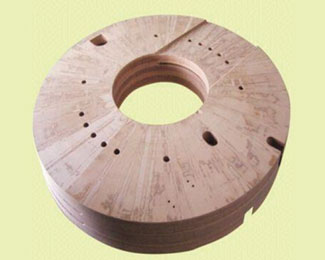

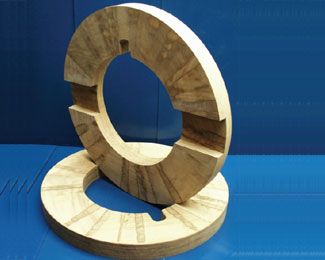

  • Pressure rings

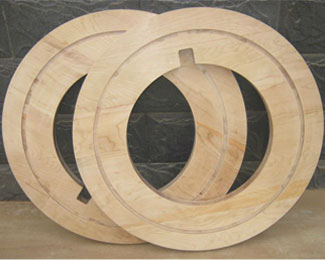

  • Rings
  • Yolk beams
  • Lead structure

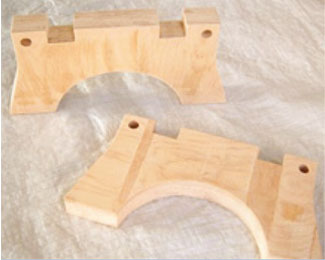

  • Block supports / pressure parts
  • Coil supports
  • Supports
  • Spacers

Custom made components can also be supplied as per customer drawing & specifications.

For Technical property & detailed information, please Contact Us
