HV Coil Winding Machines up to 1600mm

MV Current Transformers

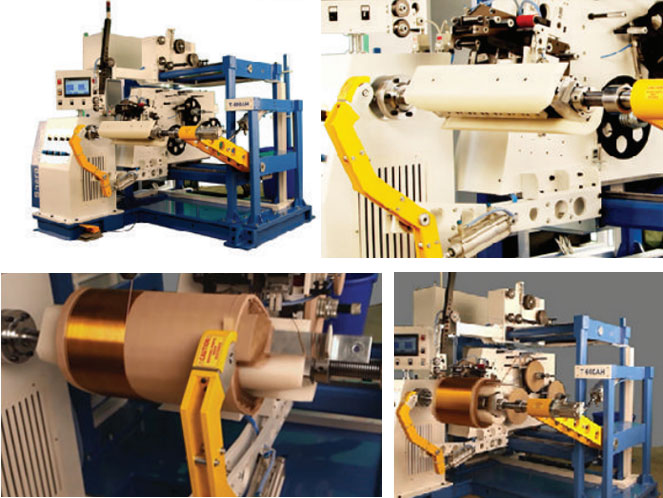

Fully automatic & semi-automatic HV coil winding machine


  • Winding width : up to 1600mm
  • Winding speed: 500 RPM (max.)
  • Conductor type: Al/Cu (Round/Rectangular - Enamelled/DPC)
  • Conductor size: 0.4mm to 3.5mm
  • Coil type:Round/Oval/Rectangular
  • Insulation type: Graded layer/Full width paper Insulation
  • Ribbon width: 12mm to 30mm
  • Ribbon thickness: 0.05mm to 0.50mm

For Technical property & detailed information, please Contact Us
