ACME can supply indoor and outdoor type, oil immersed and dry (epoxy cast resin) type Medium Voltage Current Transformers (Support, BusBar, Capacitive Layer and Bushing types), Medium Voltage Current Transformers (Double or Single Pole and Fused types), Low Voltage Current Transformers (Busbar, Torodial/Ring and Cable types) and other customer designed products upon request.

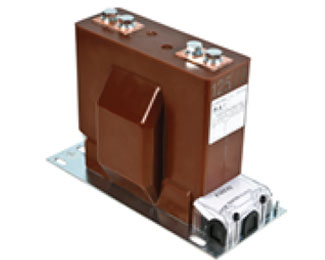

The current transformer is designed to supply the secondary circuit a current that is proportional to the primary current. Current transformers must meet the specifications of the medium voltage network (voltage, current, frequency). Current transformers are defined by their transformation ratio, rated burden and their accuracy class. The accuracy class depends on the type of operation: metering or protection.
Our MV Current transformers are complying with IEC 61869-1 ve 2, IEC 60044-1, ANSI/IEEE STD. C57.13, AS 60044-1 Standards and designed for Indoor (from 3.6kV to 36kV, epoxy cast resin) and Outdoor (from 3.6kV to 52kV, epoxy cast resin and oil immersed) applications.

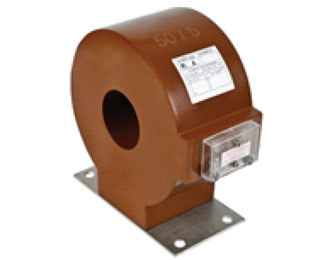

The current transformer is designed to supply the secondary circuit a current that is proportional to the primary current. LV Current transformers must meet the specifications of the low voltage network (voltage, current, frequency). Current transform- ers are defined by their transformation ratio, rated burden and their accuracy class. The accuracy class depends on the type of operation: metering or protection.
Our LV Current transformers are complying with IEC 61869-1 ve 2, IEC 60044-1, IEC 60044-8 (LPCT), ANSI/IEEE STD. C57.13, AS 60044-1 Standards.

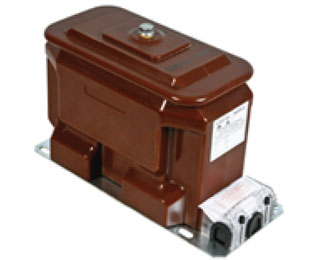

The voltage transformer is designed to supply the secondary circuit a voltage that is proportional to the primary voltage. Voltage transformers must meet the specifications of the medium voltage network (voltage, current, frequency). Voltage transformers are defined by their rated burden and their accuracy class. The accuracy class depends on the type of operation: metering or protection.
Our MV Voltage transformers are complying with IEC 61869-1 ve 3, IEC 60044-2, ANSI/IEEE STD. C57.13, AS 60044-2 Standards. MV Voltage transformers are designed for Indoor (from 3.6kV to 36kV, single phase, double phase) and Outdoor (from 3.6kV to 36kV, single phase, double phase) applications.
