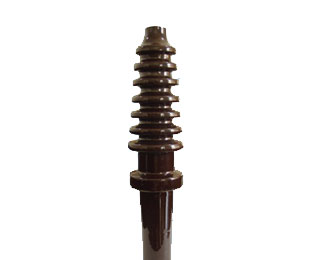

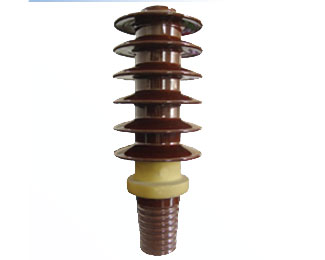

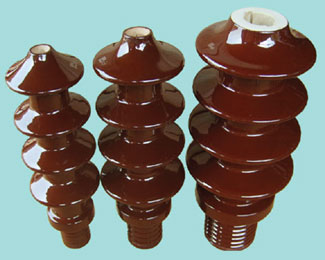

HV Bushings

  • product-images
  • product-images
  • product-images
  • product-images

Specifications

  • DIN 42531: 12KV 250A/24KV 250A/36KV 250A
  • Creepage Distance: 12KV 250A - 295mm, 24KV 250A – 445mm, 30KV 250A - 580mm, 720mm, 900mm, 990mm, 1260mm, 1320mm, 1650mm
  • DIN 42532: 12KV 630A/24KV 630A/36KV 630A
  • Creepage Distance: 12KV 630A – 305mm, 24KV 630A – 440mm, 36KV 630A - 665mm
  • DIN 42533: 12KV 1000A/24KV 1000A/36KV 1000A, 12KV 2000A/24KV 2000A/36KV 2000A, 12KV 3150A/24KV 3150A/36KV 3150A
  • Creepage Distance: 12KV 1000A/12KV 2000A/12KV 3150A – 295mm, 24KV 1000A/24KV 2000A/24KV 3150A – 445mm, 36KV 1000A/36KV 2000A/36KV 3150A – 635mm
  • DIN 52534: 52KV 1000A/52KV 2000A/52KV 3150A
  • EN 50180: Type 2 – Creepage distance 480mm, Type 3 – Creepage distance 600mm, Type 4 – Creepage distance 900mm

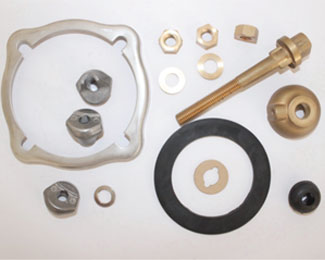

Fittings & accessories:

  • Tin Plating is possible on brass and copper parts.
  • Fixing metal can be Stainless Steel A2-70 or Steel plated
  • Gasket Types: NBR, Cork, Viton, Pressboard.
