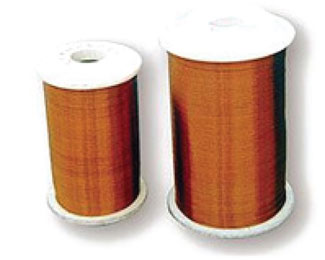

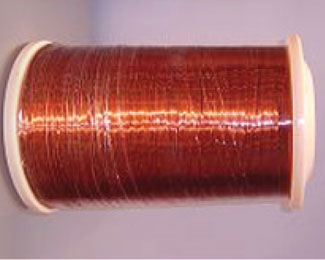

Enameled Round Winding Wires

Enameled round wire is a type of winding wire made by oxygen-free Copper Wire or electric round Aluminium Wire drew or rolled by certain dimension molds/dies and then enameled for many times. It is mainly used for Transformer, Electric Motor, Generator and other electric devices.

  • product-images
  • product-images

Product range

  • PVA enameled Copper/Aluminium wires, class 120/155
  • PVA epoxy enameled Copper/Aluminium wires, class 120
  • Modified Polyester enameled Copper/Aluminium wires, class 155
  • PEI enameled Copper/Aluminium wires, class 180
  • PEI+Polyamide imide coat (epoxy) enameled Copper/Aluminium wires, class 200

Size range

  • Diameter of Copper/Aluminium conductor: 0.70mm---6.00mm

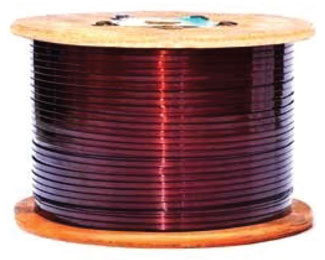

Enameled Rectangular Winding Wires

Enameled rectangular wire is a type of winding wire made by oxygen-free Copper strip or electric Aluminium strip drew or rolled by certain dimension molds/dies and then enameled for many times. It is mainly used for Transformer, Electric Motor, Generator and other electric devices.

  • product-images
  • product-images

Product range

  • PVA enameled rectangular Copper/Aluminium Strips, class 120/155
  • PEI enameled rectangular Copper/Aluminium Strips, class 180
  • PEI+polyamide imide coat(epoxy) enameled rectangular Copper/Aluminium Strips, class 200

Size range

  • Thickness a: 0.90mm---5.00mm
  • Width b: 2.00mm---16.00mm
  • Suggested ratio of thickness and width: 1.5＜b/a＜7.5

For Technical property & detailed information, please Contact Us
